Urban Redevelopment Authority (URA)

Envelope Control Guidelines

Check the envelope control guidelines for semi-detached houses.

Last updated 7 June 2026

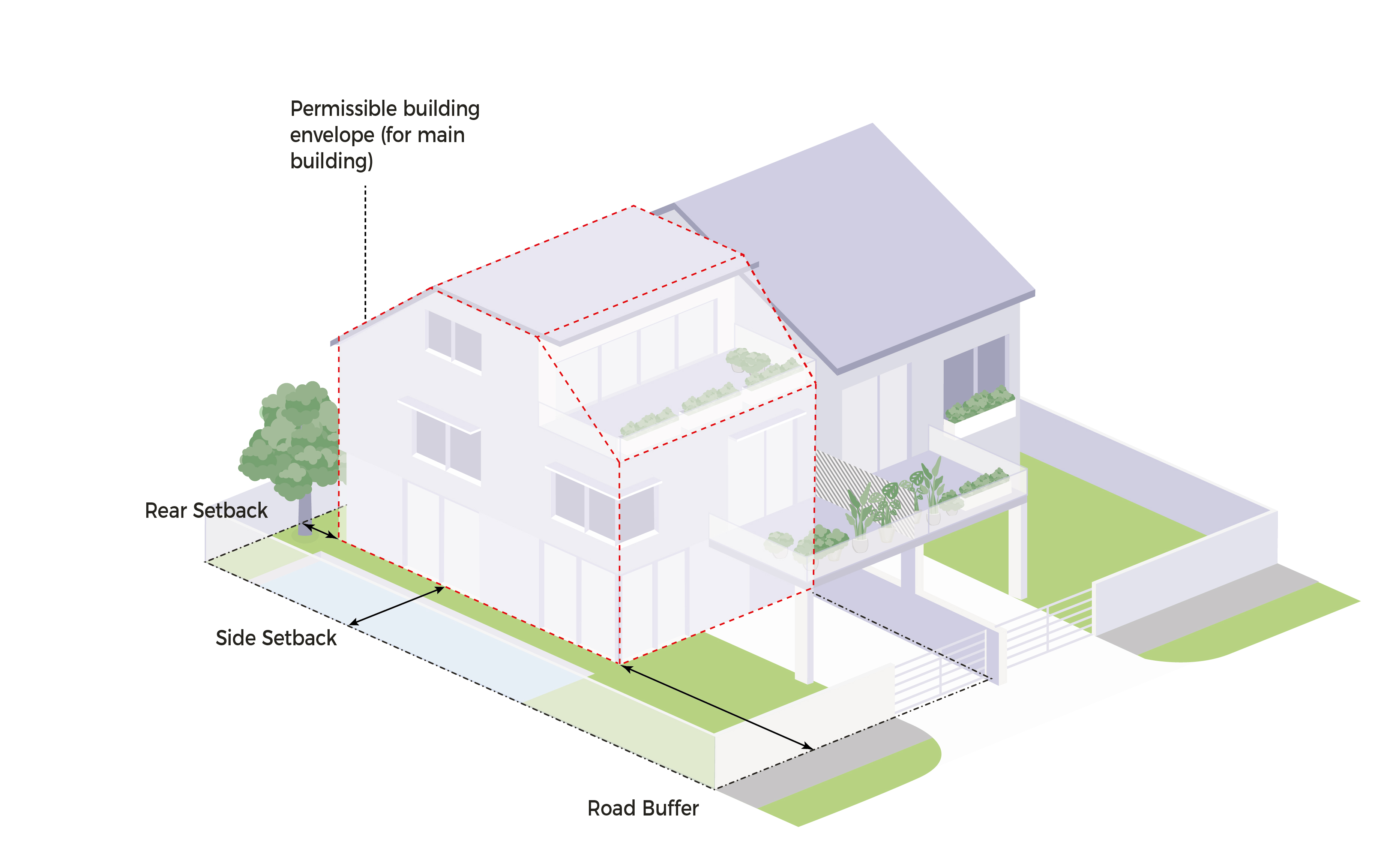

3D house diagram showing permissible envelope, setbacks and road buffer.

Envelope Control Guidelines

From 11 May 2015, landed housing shall follow the envelope control guidelines. The guidelines define an allowable building envelope based on storey height and building setbacks. The development shall not exceed the permissible building envelope as illustrated in figure above.

For existing landed housing approved under previous conventional landed housing guidelines, new Additions and Alterations works shall comply with the permissible building envelope in the Envelope Control guidelines.

Where the existing building already exceeds the permissible building envelope, the new Additions and Alterations shall not further increase the building bulk. URA will assess such applications on the merits of the proposal.

Building Height

Under the envelope control guidelines, the overall building height is based on the allowable number of storeys and the floor-to-floor height in metres. The figures below show the building envelope and the relationship between storey height and allowable building height in metres.

  • Landed housing shall not exceed the 2-storey or 3-storey height control, or the prescribed storey height as shown in the designated landed housing plan in the Master Plan, whichever is lower. This is to ensure that the height of the development is compatible with the existing character1 of landed housing in the neighbourhood.

  • The allowable building height is measured from the external platform level. If there is an existing level difference within the site, the allowable building envelope height may be taken separately from the two distinct platform levels.

  • For landed housing on sloping sites, where there are existing platform level differences between the front and rear of the site, the relevant envelope control shall be taken from the proposed (and allowable) platform levels along the permissible front and rear setback of the site. These measurements shall be connected diagonally to establish the permissible building envelope. To allow flexibility in designing spaces that transition between different levels, protrusions of up to 1m height can be allowed beyond the permissible building envelope. See diagram “Envelope Control for sloping sites (section)” below.

  • Lift overrun and safety barriers at RC flat roofs may be considered up to 1m beyond the allowable building height.

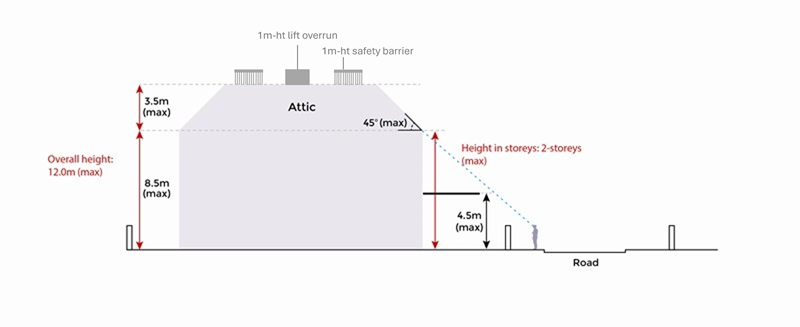

2-storey building envelope with attic and height limits on sloping site.

2-storey Envelope Control landed housing

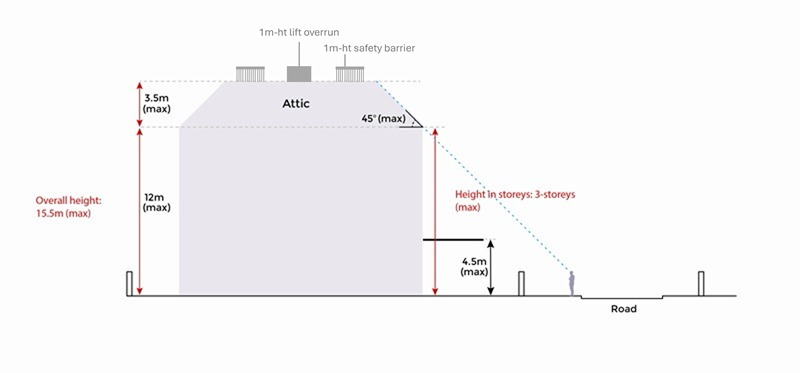

3-storey building envelope with attic and height limits on sloping site.

3-storey Envelope Control landed housing

Section diagram of building envelope on sloping site with height profile.

Envelope Control for sloping sites (section)

1 Other height controls may also be applicable, such as:

  • Absolute technical height constraints (e.g. Aviation paths restrictions, military and telecommunications installations). The absolute technical height (Based on Singapore Height Datum [SHD]) shall take precedence if it is stricter than any of the other height controls.

  • Conservation guidelines (available at URA SPACE)

  • Urban design height controls (available at URA SPACE)

Mezzanine Floors

Mezzanine floors are no longer required to be kept to below 50% of a typical floor plate, and there are no restrictions on window openings on the front façade of the mezzanine floors.

Landed houses with mezzanine floors shall be designed within the permissible building envelope stipulated for the landed housing estate it is located in (i.e. maximum 12 m overall height for a designated two-storey landed housing estate and 15.5 m for a designated three-storey landed housing estate). The headroom proposed for each floor shall promote good internal spatial quality for residential living.

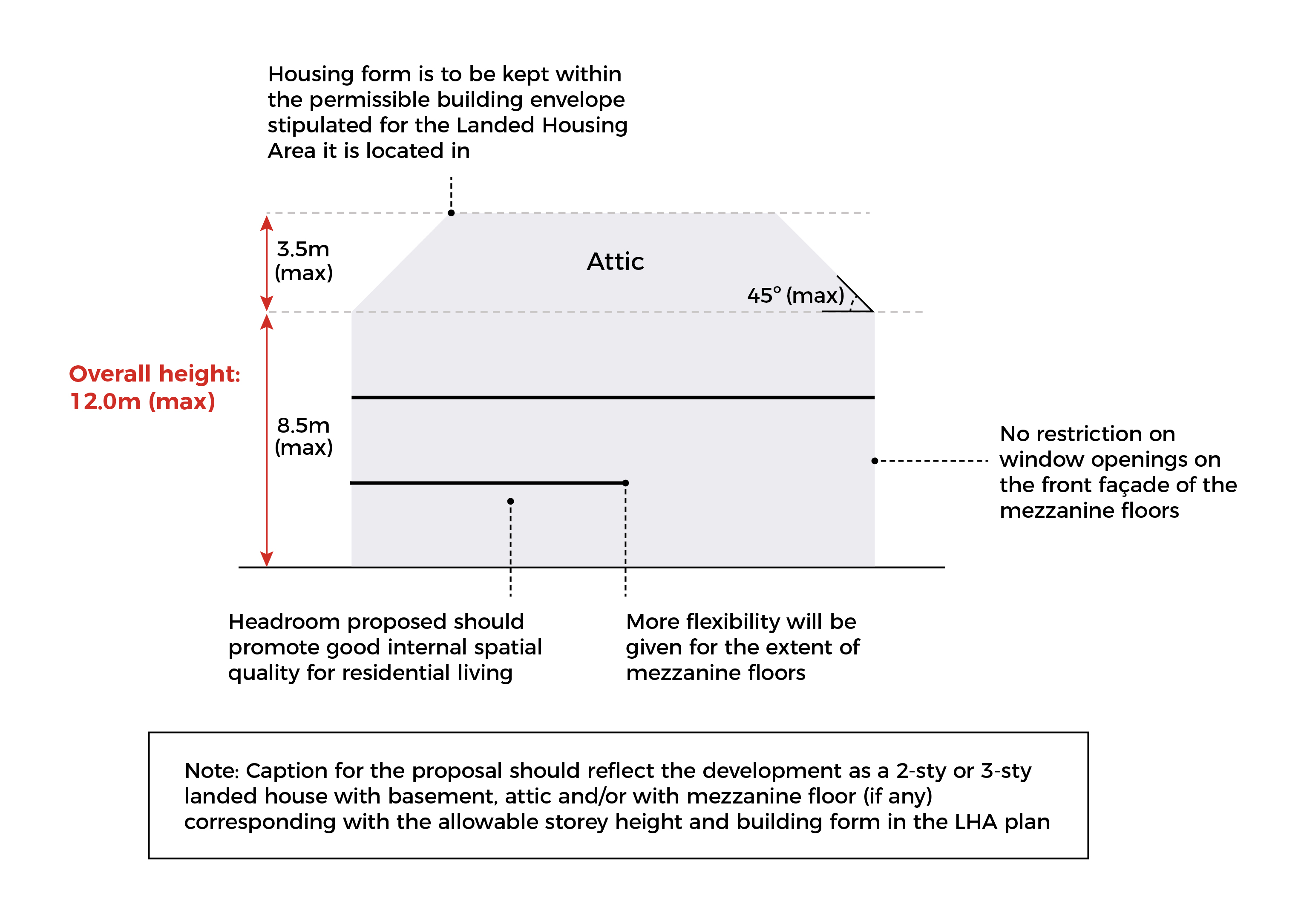

Mezzanine and attic diagram showing height limits and façade flexibility.

Guidelines for Mezzanine Floor

Attics

An attic is an incidental space that may be allowed within the permissible two-storey and three-storey envelopes respectively. Where roof terraces are proposed on attic roofs, they shall be located at least 3m below the top extent of the permissible building envelope to ensure future coverings by homeowners remain within the overall building envelope. Roofs with less than 3m below the top extent of the permissible building envelope shall be proposed as RC flat roofs that are non-accessible except for maintenance purposes.

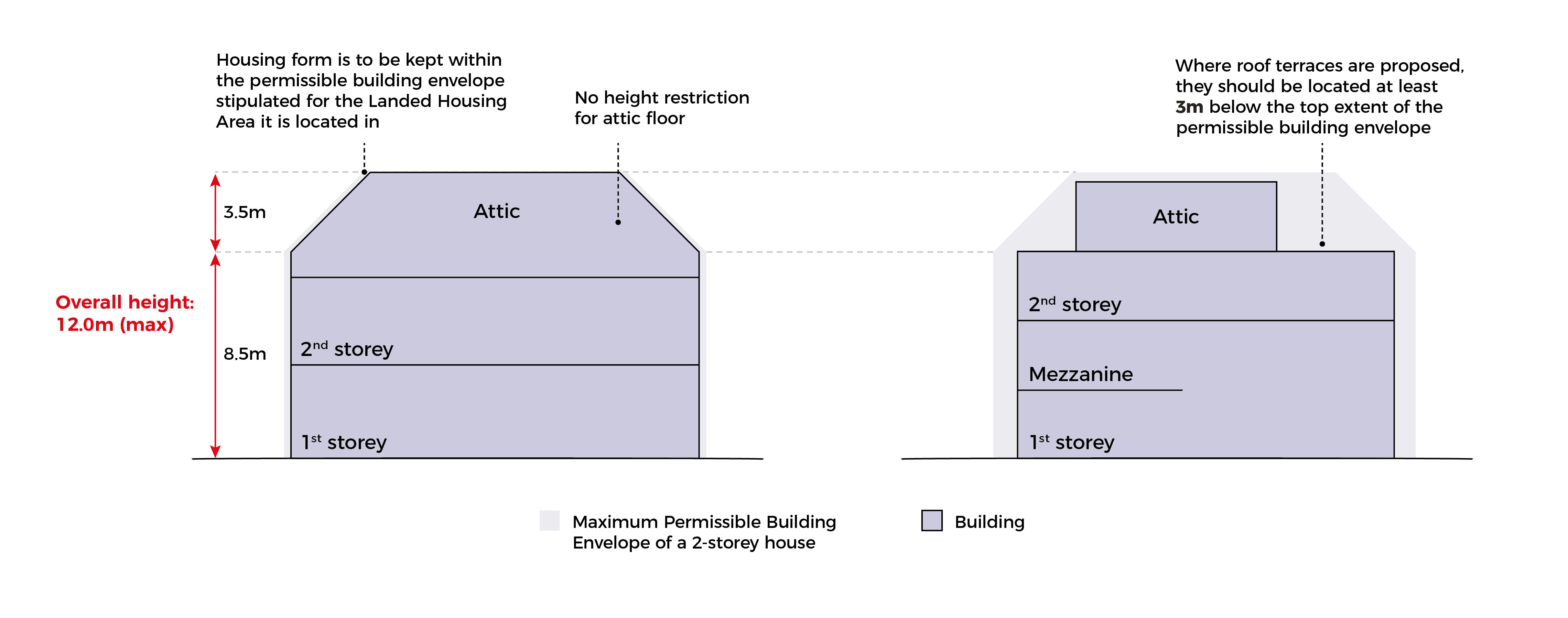

Building envelope diagram with attic, height limits and terrace placement rules.

Attic Guidelines

Basements

Basements may be built up to the limits shown in the table below.

Table 1: Basement Setbacks

Type of Basement

Setback from Road Reserve Line

Setback from Other Boundaries

Basement with protrusion

Up to the road buffer

Up to the building setback

Fully submerged basement

Up to the road reserve2 line, provided the portion underneath the green buffer is submerged at least 2m or more below the ground level

Up to the site lot boundary, provided:

  • the portion underneath the 2m peripheral planting verge is submerged at least 2m or more below the ground level;

  • there are no technical requirements (e.g. sewerage, drainage) and the basement does not cause any adverse impact to the adjoining property.

  • the side of a basement wall abutting any site boundary shall not have any openings into the adjoining site.

2 Road Reserve: The plot of land to be vested in the State as required under the Street Works Act. It is demarcated by the line of Road Reserve in the Road Line Plan and the site boundary.

Basements in Low-lying Areas

For sites in low lying landed housing areas, internal areas below the minimum platform level (MPL)3 shall be treated as a basement storey and shall not count as an additional storey, subject to:

  • Any building structures or internal living areas proposed below the MPL shall be fully sealed with no external openings4.

  • Overall allowable height (based on the envelope control guidelines for landed houses) shall be measured from the MPL applicable for the site. The car porch roof shall be kept to maximum of 4.5m above the external ground level.

Where the MPL requirement is significantly higher than the existing levels of adjacent sites or roads, and the existing ground levels shall be retained, any building structures/internal spaces that are below the MPL but above the existing ground levels shall comply fully with the main building road buffer and setback requirements. They shall not be built up to the site lot boundary.

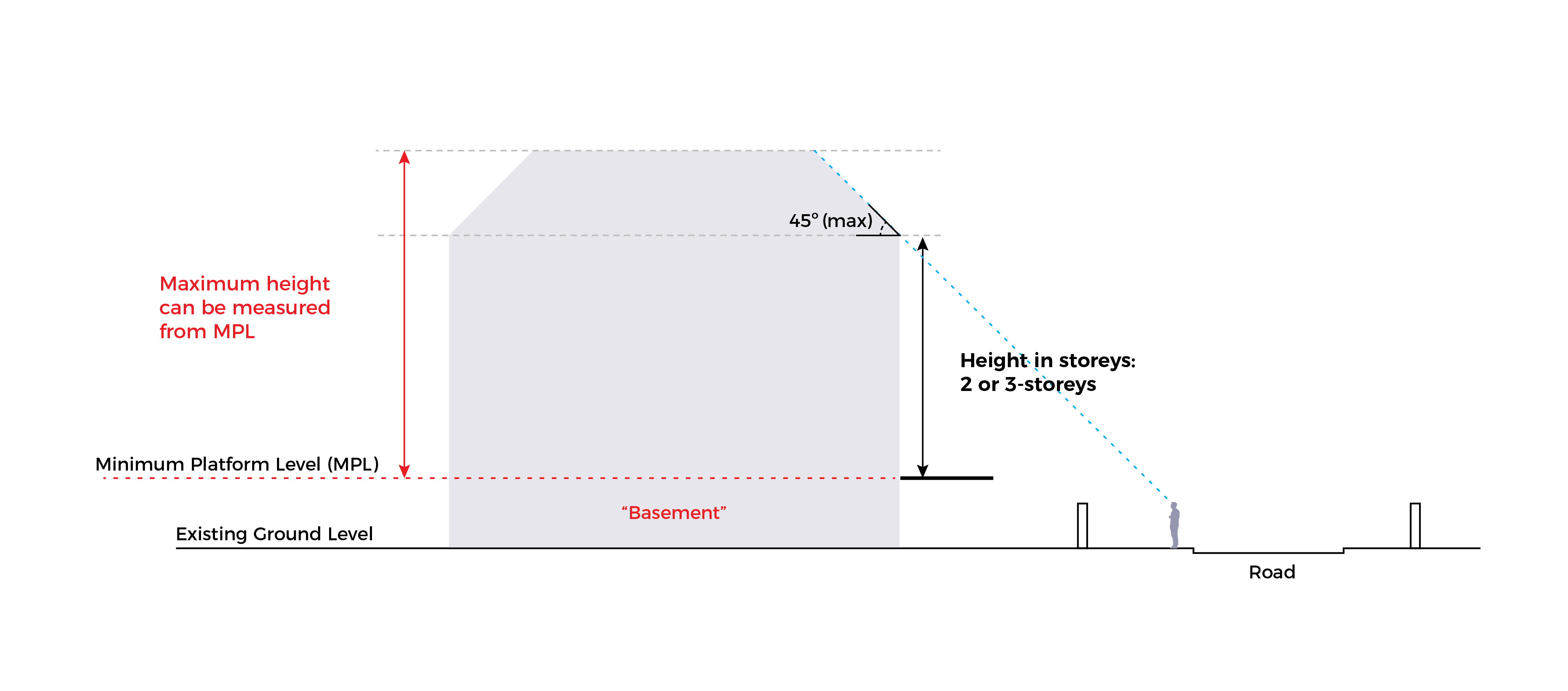

Diagram showing height measured from MPL with basement and 2–3 storey limits.

Basement guidelines for low-lying sites

3 Minimum Platform Level (MPL): The minimum 1st storey level to be provided within the site. The MPL is determined by the Public Utilities Board (PUB).

4 If external openings are proposed, additional requirements from PUB shall be complied with, as follows:

  • The internal finished floor level shall be at least 300mm above the adjacent road level; and

  • Only entrance driveways, bin centres, turfed compound area, car porches or any other areas as may be approved by PUB may be permitted below the MPL. Bedrooms and M&E installations shall be located above the MPL.

Basements on Sloping Sites

For plots with sloping ground, exposed basement protrusion above existing ground level may be considered as shown in the figure below as long as the basement protrusion is kept within the permissible Envelope Control building height.

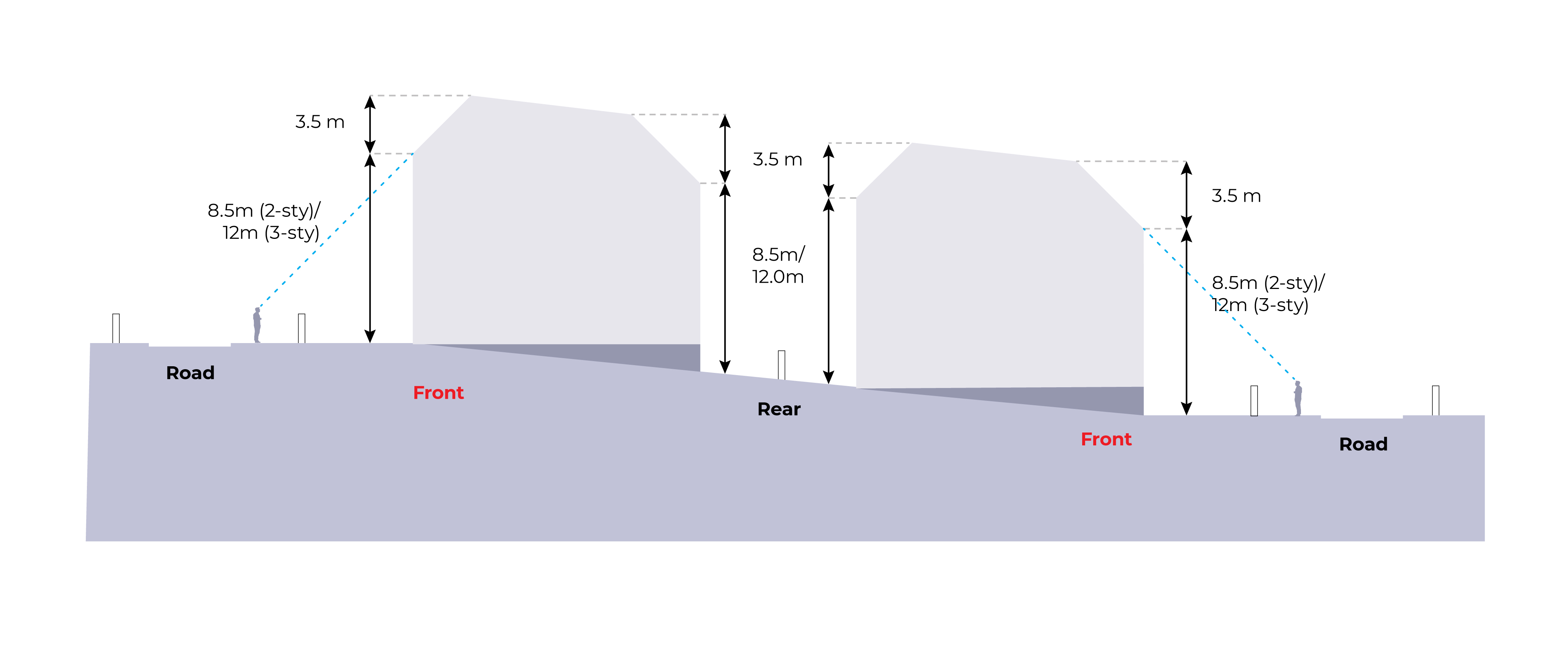

Sloping site diagram showing front and rear building height limits and setbacks.

Basement Protrusion for Sloping Sites
