Building Setback from Boundary

Setback Requirements

All BP developments shall be sufficiently set back from the road and common boundary. The setback distance is measured from the road reserve¹ line or boundary line to the external wall of the building, excluding land to be vested to the State for road and/or drainage purpose.

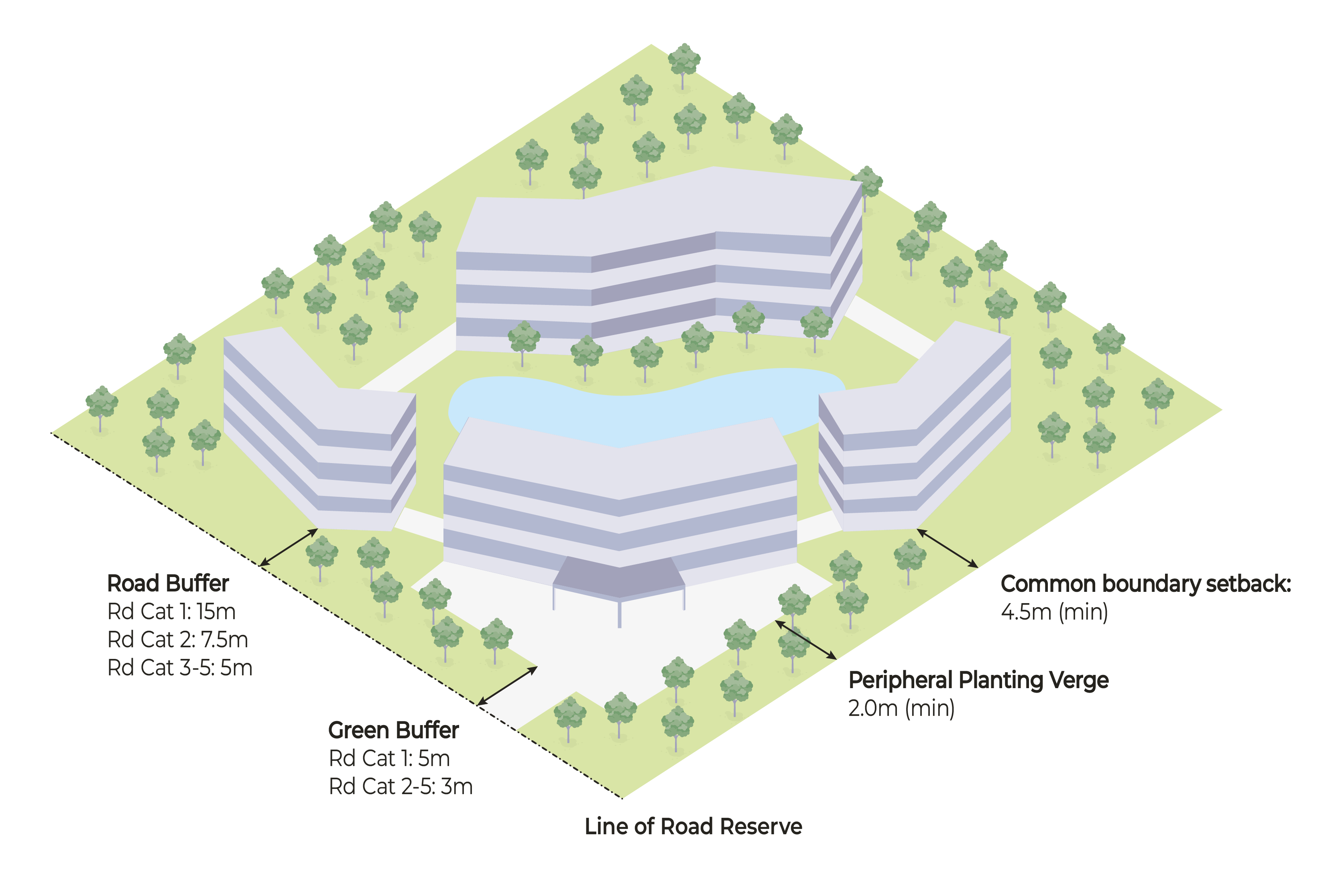

All BP developments fronting a public road shall provide a road buffer, the width of which depends on the hierarchy of the road. A green buffer shall be set aside in the road buffer depending on the width of the road buffer.

The buffer requirements for the Road Categories 1 to 5 are in Table 1 below. The common boundary setback requirements are in Table 2 below.

^{1 Road Reserve: The plot of land to be vested in the State as required under the Street Works Act. It is demarcated by the line of Road Reserve in the Road Line Plan and the site boundary.}

Road Buffer and Green Buffer

Common Boundary Setback & Peripheral Planting Verge

Setback for Building Appendages
