RC Flat Roofs

RC flat roofs shall remain inaccessible except for maintenance purposes only¹. Activating the rooftop for uses such as roof terraces and landscaped gardens may be allowed depending on the merits of the proposal. No structures shall be allowed unless otherwise approved by URA. Where allowed, structures (including any safety barriers) shall comply with height controls² and the following guidelines.

^{1 RC flat roofs that are accessible via ladders for maintenance purposes only are subject to agencies’ requirements for safety barriers to ensure the safety of maintenance personnel. Safety barriers shall not exceed 1m in height.}

^{2 Height controls applicable, include:}

• ^{Absolute technical height constraints (e.g. Aviation paths restrictions, military and telecommunications installations). The absolute technical height (Based on Singapore Height Datum [SHD]) shall take precedence if it is stricter than any of the other height controls.}

• ^{Conservation guidelines (available at URA SPACE)}

• ^{Urban design height controls (available at URA SPACE)}

Communal Pavilions

Communal pavilions are small-scale, ancillary landscaping features that function as sheltered, open-sided resting points. Access to communal pavilions shall be from common areas only. The pavilions shall be computed as GFA unless they meet the following criteria:

• Maximum 500sqm³ or 50% of roof coverage, whichever is lower.

• For developments which have reached the allowable storey height control, the pavilions shall remain open-sided when viewed externally. This is to ensure that the pavilions do not form an additional storey.

• For developments which have not reached the allowable storey height or are not located within areas subject to storey height control, maximum 50% perimeter enclosure of the rooftop pavilions may be allowed.

• Communal pavilions shall be integrated with lush greenery. The greenery on the rooftop shall be both enjoyable by the building users and visible from the surroundings.

• Plants shall be incorporated on permanent and preferably sunken planting, planned with sufficient soil depth based on the types of plants proposed. Some space shall be set aside for the provision of communal facilities and furniture to enhance the rooftop.

• A Landscape Plan and relevant sections for ground/rooftop spaces containing communal pavilions, showing the proposed landscaping scheme, pavilion dimensions, planting palette, soil depth, communal facilities, shall be submitted with the Development Application.

^{3 The area is defined as the area of pavilion measured up to the roof eaves line.}

Solar Panels

The installation of solar panels on RC flat roofs may be considered if they meet the following criteria:

1. Solar panels are installed between 10 to 15 degrees relative to the horizontal plane to optimise the performance of solar panels and minimise glare to the buildings in the vicinity; and

2. The installation of solar panels shall not result in the removal of any greenery approved under the Landscaping for Urban Spaces and High-Rises (LUSH) Programme.

Installation of solar panels and M&E equipment such as inverters for the solar panel system does not require planning permission except in locations and contexts described below.

Assessment of Storey Height

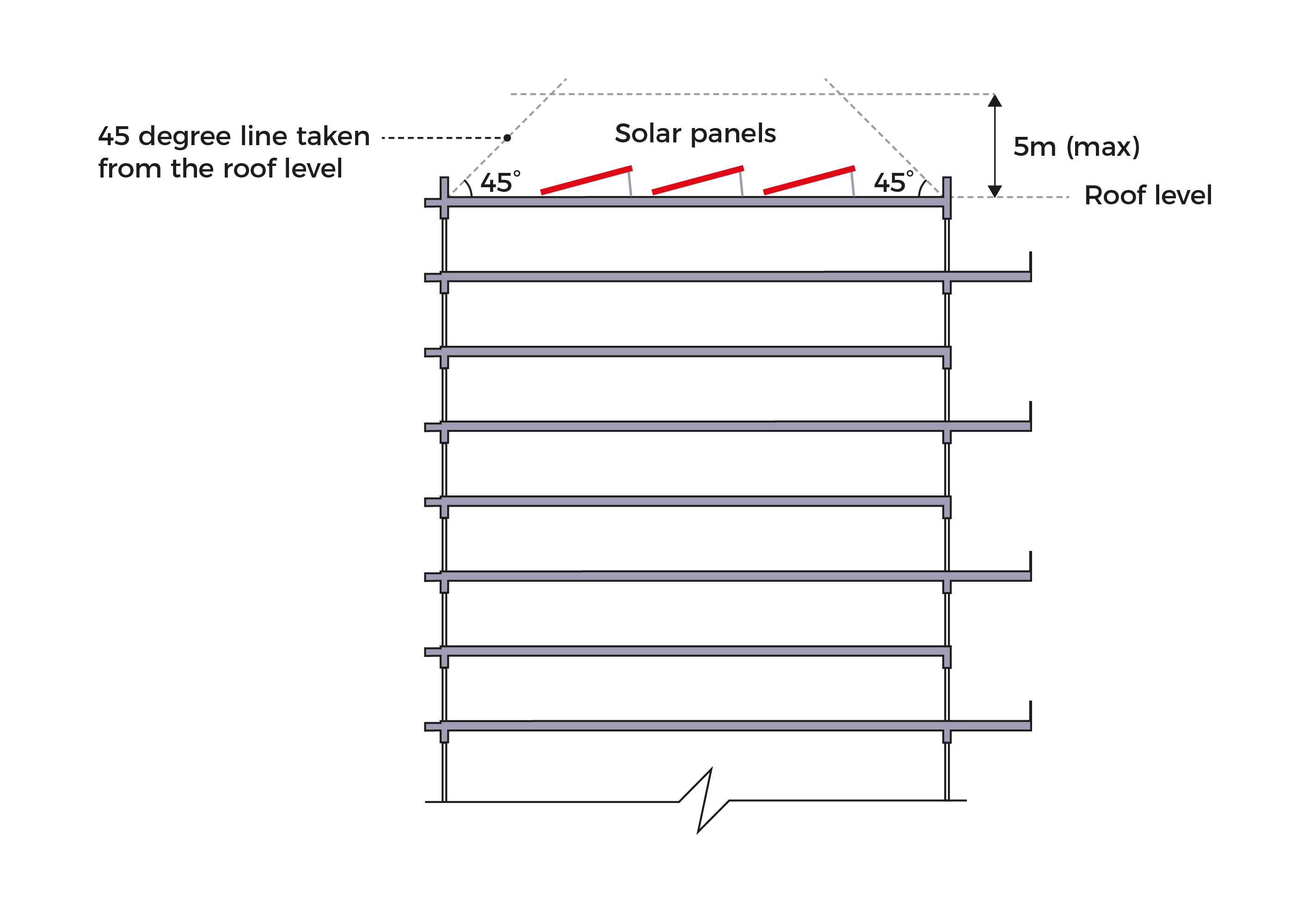

Elevated solar panels that require planning permission may be assessed as an additional storey for storey height control purposes unless they comply with the guidelines below:

Extent and Height of Elevated Solar Panels
